| สถานที่กำเนิด: | เมืองเหอเฟย ประเทศจีน |
| ชื่อแบรนด์: | Midea Biomedical |
| ได้รับการรับรอง: | CE. ISO9001 ,UL |
| หมายเลขรุ่น: | MD-10N/A |
product info.

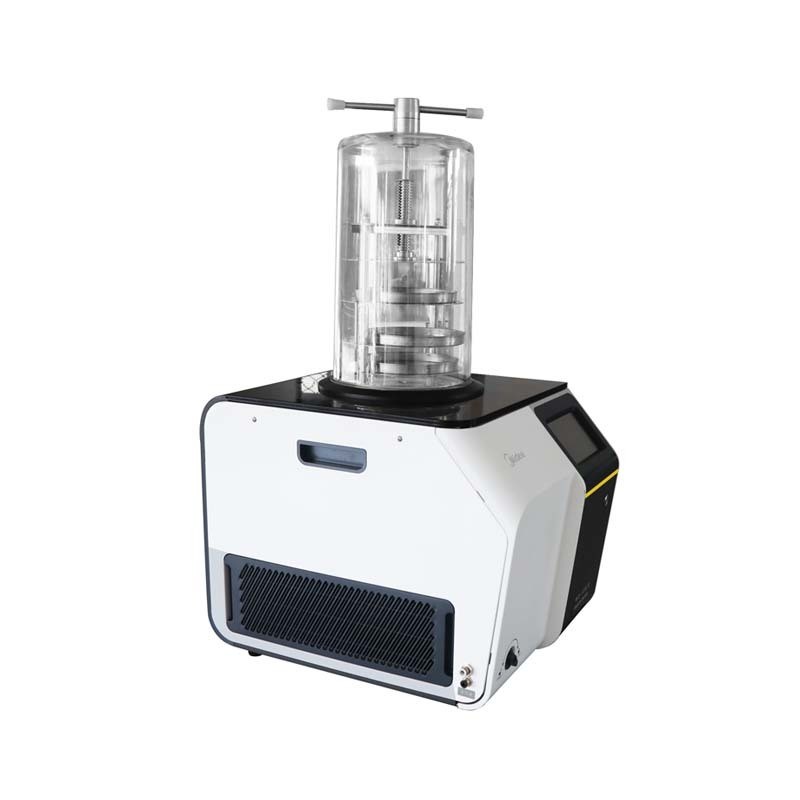

Consolidate your sample preservation workflow with this all-in-one sealing lyophilizer:
Unique value: Eliminates transfer steps between drying and sealing preserving sample integrity
| Model Name | MD-10N/A | MD-10N/B | MD-10N/C |
|---|---|---|---|
| Dryer area(㎡) | 0.12 | 0.08 | 0.12 |
| Ability to capture water(Kg/batch) | 3 | ||
| Schering bottle quantity Φ12mm | 920 | 560 | 920 |
| Schering bottle quantity Φ16mm | 480 | 285 | 480 |
| Schering bottle quantity Φ22mm | 260 | 165 | 260 |
| Eggplant shape bottle | 0 | 0 | 8 |
| Plate load capacity (L) | 1.5 | 1 | 1.5 |
| Plate size(mm) | Φ200 | Φ180 | Φ200 |
| Plate distance (mm) | 70 | ||
| Tray quantity(pc) | 4 | 3 | 4 |
| Cold chamber size(mm) | Φ250×150 | ||
| Cold trap the lowest temperature(°C) | ≤-56 (No load) | ||
| Ultimate vacuum(Pa) | ≤5 (No load) | ||
| Power Consumption kw.h(220V50Hz) | 0.95 | ||
| Amibient temperature(°C) | ≤25 | ||
| Overall dimension(mm) | 610(L)×482(W)×455(H)+440 | ||
| Weight(kg) | 55 | 61 | 57 |
| Heating Temperature(°C) | No | ||
